Door/Window Casing 3-1/2" - 121
Door/Window Casing 3-1/2" - 121

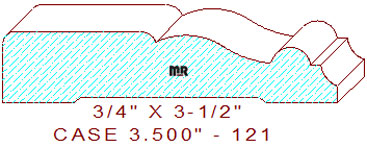

This decorative 3-1/2" - 121 door/window casing measures 3.500" wide by .750" thick. The classy profile is comprised of a 1-39/64" wide double eased edge fillet consisting of a 1/8" radius on the outer edge, and a 5/32" radius on the opposite side, connected to a two tangent radius cyma reversa that transitions into a 27/64" wide half circle, joined to a 7/64" broad horizontal line with a 9/32" radius cove positioned on the thin side of the pattern. We have a few other similar profiles you may want to review and consider, door casing 3.500" - 46, window casing 3.500" - 108, and door/window casing 3.500" - 171.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.721
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$264.00
Total:
$545.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$281.00
Total:
$579.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$306.50
Total:
$630.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
