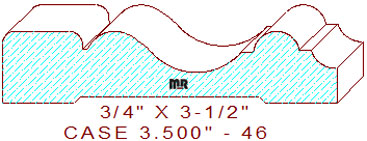

This Old-World Casing Moulding 3-1/2" - 46 measures 3.500" wide by .750" thickness with a .563" depth of cut on the top horizontal moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The colonial profile is comprised of a 27/32" wide double eased edge fillet consisting of a 1/8" radius on the outer edge, and a 9/64" radius on the opposite side, attached to a 3/64" wide sunk fillet, connected to a two tangent radius cyma reversa that transitions into a 31/64" wide half round circle flanked by small horizontal lines with a 9/32" radius cove on the thin side of the pattern. We have a few other similar profiles you may want to review and consider, casing 3.500" - 108, casing 3.500" - 121, and casing 3.500" - 171.
We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity and reduce production cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
