Casing Moulding 3-1/2" - 139

Casing Moulding 3-1/2" - 139

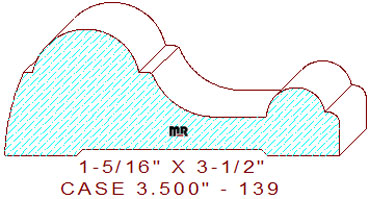

This attractive door casing moulding 3-1/2" - 139 measures 3.500" wide by 1.312" thickness, enabling the pattern to be milled from six quarter lumber. The stylish profile is comprised of a 2-19/64" radius arc on the left side edge, connected to a 1-7/64" wide half round circle flanked by small horizontal fillets on top, connected to a 1-3/16" wide congee in the center with a 5/8" wide half round bead attached to a 1/8" eased edge fillet on the right side of the pattern. We offer another profile in the same width but with a larger depth of cut, it might be able to be milled from six quarter but most likely eight quarter lumber, casing 3.500" - 97.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = 1.125" (top knives) & .062" (bottom cutters.)

Thickness = 1.312" / Depth of Cut = .274" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
