Door/Window Casing 3-1/2" - 97
Door/Window Casing 3-1/2" - 97

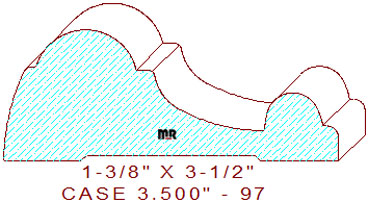

This extraordinary 3-1/2" - 97 door/window casing measures 3.500" wide by 1.375" thickness, enabling the pattern to be machined from six or eight-quarter lumber. The beautiful profile composes a 19/64" radius arc on the left side edge, connected to a 1/8" horizontal line that merges with a 1-3/64" wide half circle and a 3/16" broad line segment, joined to a two tangent radius cove in the center with an oval-shaped bead and a small 1/8" radius edge fillet on the right side of the design. We offer another profile in the same size with a little less depth of cut so that it can be milled from six-quarter lumber, door/window casing 3.500" - 139.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.326
Top Cutter Head
Width: 3.500
Depth of Cut: 1.250
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$153.50
$298.00
$264.00
Total:
$715.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$162.00
$315.00
$281.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$174.75
$340.50
$306.50
Total:
$821.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
