Door/Window Casing 3-1/2" - 205

Door/Window Casing 3-1/2" - 205

Door/Window Casing 3-1/2" - 205

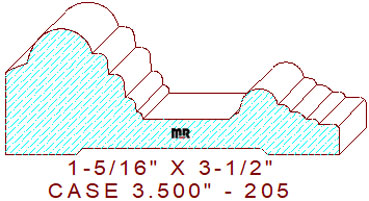

This intricate 3-1/2" - 205 door/window casing measures 3.500" width by 1.312" thickness, necessitating using six-quarter lumber for milling on an industrial-grade molder. The stylishly bold profile contains a thumbnail-shaped half circle and a slightly angled line with a 1/16" rolled outer edge on the top left. This area connects four different-sized cascading quarter round beads to a 59/64" full sunken fillet in the center. The remaining portion of the design consists of a similar style pattern as the top but with a 7/32" broad line segment and a 1/16" eased edge, leaving a 5/16" thickness dimension on the right side of the detail.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely cut this pattern on your machinery, this pattern will not be able to be milled on specific moulders.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 1.214
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$255.50
Total:
$545.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$272.50
Total:
$579.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$289.50
Total:
$613.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
