Door/Window Casing 3-1/2" - 214
Door/Window Casing 3-1/2" - 214

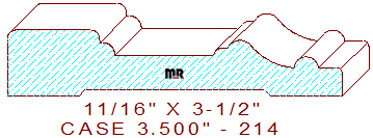

This creative 3-1/2" - 214 door/window casing measures 3.500" width by .687" thickness, necessitating a 3-3/4" wide blank of four-quarter lumber for milling on an industrial moulder. The decorative profile contains a 31/32" flat line segment with 3/32" rolled edges and a 1/8" quarter round on the top left. The quarter-circle connects to a 1-1/32" sunk fillet in the center. The remaining portion comprises a 3/32" quarter-circle joined to a down-sloping s-shaped curvature with a 1/4" half bead and a 1/4" fillet with a 1/16" eased edge on the design's right side. We offer a small family of mouldings to complement this pattern, crown 4.250" - 8, baseboard 5.250" - 101, and chair rail 3.000" - 41.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.609
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
