Chair Rail 3" - 41

Chair Rail 3" - 41

Chair Rail 3" - 41

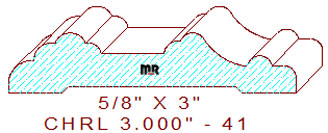

This opulent chair rail 3" - 41 measures 3.000" width by .625" thickness enabling the use of a 3-1/4" wide blank of four-quarter lumber for milling on a commercial moulder. The beautiful profile comprises three convex arcs joined together, creating a clover-shape with a 1/4" radius quarter round on the top left. The three semicircles connect to a 21/32" sunk fillet in the center. The remaining section consists of a quarter-round convex arc joined to a downsloping s-shaped curvature with a half-round bead and a small fillet with a rolled edge on the design's right side. We offer a family of mouldings to complement this design pattern, base moulding 5.250" - 101, casing 3.500" - 214 and crown 4.250" - 8.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these types of milling operations. For knife quoting purposes, click on the calculator below; we have supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .625" (top knives) & .062" (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
