Casing Moulding 3-1/2" - 36

Casing Moulding 3-1/2" - 36

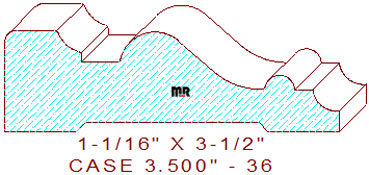

This bold casing moulding 3-1/2" - 36 measures 3.500" wide by 1.062" thickness. The colonial design is comprised of a 9/16" wide straight line with a 1/8" eased edge, connected to a 11/32" radius cove with a 3/32" tall vertical fillet and a 11/32" wide sunk fillet that transitions into a deep sloping cyma reversa, attached to a 5/16" wide half round circle joined to a 3/16" wide horizontal line with a 1/4" cove on the thin side of the design. We have other similar profiles in the same width for your review and consideration, casing 3.500" - 6, casing 3.500" - 78, casing 3.500" - 79, and casing 3.500" - 84.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = 1.000" (top knives) & .093" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
