Door/Window Casing 3-11/16" - 6
Door/Window Casing 3-11/16" - 6

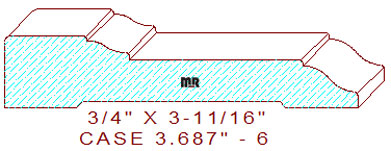

This colonial 3-11/16" - 6 door/window casing measures 3.687" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The elevation changing profile is comprised of a 55/64" wide raised fillet with a 1/16" eased outer edge on the left, attached to a two tangent radius cyma reversa consisting of a 1/4" and 3/8" radiuses, joined to a 1-3/16" broad line segment in the center with another ogee on the right side of the detail. We offer a similar style of this profile in the same width for your review and consideration, door/window casing 3.687" - 5.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$273.78
Total:
$565.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.28
$291.53
Total:
$600.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.91
$318.16
Total:
$654.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
