Door/Window Casing 3-11/16" - 5

Door/Window Casing 3-11/16" - 5

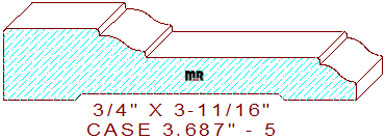

This classic 3-11/16" - 5 door/window casing measures 3.687" wide by .750" thickness, enabling the detail to be machined out of four-quarter lumber. The elegant profile originated from a hundred-year-old Cape Cod-style home in Rhode Island. The pattern reflects the old-world artisanship of days gone by. The design comprises a two-step two, tangent radius ogee cascading downward by utilizing two different-sized flat segments. The top one measures one inch wide, and the middle one is 1-13/16" wide; both side edges of the detail have 3/64" round-over to minimize damage in shipment and aid in the finishing process. We offer a similar style pattern in the same width, door/window casing 3.687" - 6, as well as a smaller version of this same profile for different rooms of your beautiful home for your review and consideration, door/window casing 2.750" - 36, the difference in width size was taken out of the flat section in the middle of the profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.723
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$273.78
Total:
$565.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.28
$291.53
Total:
$600.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.91
$318.16
Total:
$654.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
