Door/Window Casing 3-3/4" - 24
Door/Window Casing 3-3/4" - 24

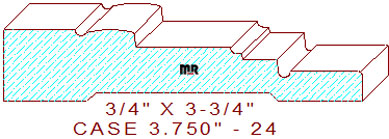

This custom 3-3/4" - 24 door/window casing measures 3.750" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The ornate stylish profile is composed of a 3/4" wide line segment on the left, attached to a miniature sized flute and a 1-1/64" radius arc with a 3/16" deep vertical step and a one-inch wide line segment in the center, connected to a 1/16" cove with a 1/16" drop in elevation and a 3/8" wide line segment, joined to a 1/16" scotia and a 3/4" wide horizontal line with a 3/64" eased edge on the right side of the design. We offer a plinth block that would enhance the overall elegant style of this design for your review and consideration, plinth block 4.125"
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$277.00
$277.00
Total:
$554.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$295.00
$295.00
Total:
$590.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$322.00
$322.00
Total:
$644.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
