Plinth Block 4-1/8"
Plinth Block 4-1/8"

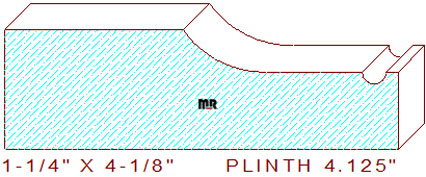

This embellishing 4-1/8" plinth block measures 4.125" wide by 1.250" thickness, allowing the detail to be milled out of six-quarter lumber. The decorative profile is composed of a 1-7/8" broad flat line on the top left, connected to a 1-7/8" wide congee derived from a 1-1/32" semicircular concave arc in the center, joined to a 1/4" wide flute with a 1/8" broad segment on the right side of the design. We offer a beautiful casing profile that will complement this design for your review and consideration, casing 3.750" - 24.
Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturer's map listed by states to help you locate a mill in your area to produce this creative pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 0.564
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.50
Not Needed
Total:
$296.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
Not Needed
Total:
$316.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$345.25
Not Needed
Total:
$345.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
