Door/Window Casing 4" - 112
Door/Window Casing 4" - 112

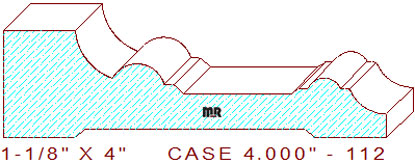

This attractive 4" - 112 door/window casing measures 4.000" wide by 1.125" thickness, requiring five-quarter lumber to mill this pattern. The beautiful profile comprises a 3/4" wide line connected to a 19/32" cove and a 19/64" radius half-round circle transitioning into a 1-1/8" wide sunk fillet flanked by small chamfers and fillets, joined to an 11/32" wide half round bead with a small horizontal line and a 13/32" cove on the thin edge of the design. We have a thinner version of this pattern you can mill out of four quarter lumber, door/window casing 4.000" - 120, and a smaller size width for your review and consideration, door/windowcasing 3.000" - 93.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.875
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$290.00
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
$309.00
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.50
$337.50
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
