Door/Window Casing 4" - 120

Door/Window Casing 4" - 120

Door/Window Casing 4" - 120

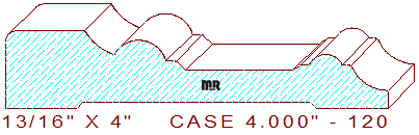

This beautiful 4" - 120 door/window casing measures 4.000" wide by .812" thickness. The decorative profile comprises a 53/64" wide horizontal line with a 1/8" radius edge connected to a 19/32" cove and a 19/64" radius half-round circle that transitions into a 1-1/8" wide sunk fillet flanked by small chamfers and horizontal lines, joined to a 11/32" wide half round bead with a small line and a 13/32" cove on the thin edge of the design. We have a thicker version of this pattern you can mill out of five-quarter lumber, door/window casing 4.000" - 112 and a smaller width size for your review and consideration, door/window casing 3.000" - 93.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$280.50
$280.50
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$299.50
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$318.50
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
