Door/Window Casing 4-3/8" - 4

Door/Window Casing 4-3/8" - 4

Door/Window Casing 4-3/8" - 4

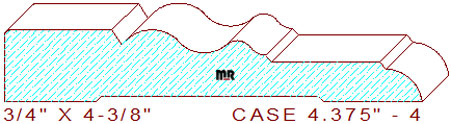

This beautiful 4-3/8" - 4 door/window casing measures 4.375" wide by .750" thickness, requiring the use of four-quarter lumber for machining on an industrial moulder. The opulent profile is comprised of a 1-1/8" wide straight line with a 1/16" eased outer edge and a beveled inner edge on the left, connected to a set of two graceful cyma reversa that drop in elevation, joined to another smaller beveled edge that transitions into a 1-1/8" wide line segment with a smaller chamfer and a 25/64" quarter round arc on the right side of the pattern. We have many similar styles of casings in different widths for your review and consideration; here is just one you may want to look over, door/window casing 4.750" - 5.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.750
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.75
$299.25
Total:
$619.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.25
$319.75
Total:
$660.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$360.75
$340.25
Total:
$701.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
