Door/Window Casing 4-3/4" - 5
Door/Window Casing 4-3/4" - 5

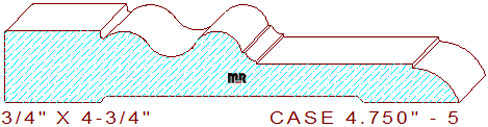

This intriguing 4-3/4" - 5 door/window casing measures 4.750" width by .750" thickness, requiring the use of four-quarter lumber for milling on an industrial moulder. The beautifully ornate profile is composed of a 1" broad straight line with a 3/64" eased outer edge on the top left. It's connected to a 3/32" vertical step with a rounded bottom that transitions into a shallow two tangent radius cyma reversa and a 1/2" wide half round bead with a miniature 9/64" cove flanked by tiny line segments in the middle, joined to a 1-5/8" broad flat line with a 3/64" step and a 17/32" quarter round arc on the right side of the design. We offer many similar styles of door casings in different widths and thicknesses for your review and consideration; here is just one you may want to look over, door/window casing 4.375" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.750
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$351.00
$329.00
Total:
$680.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$351.00
Total:
$724.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$406.00
$384.00
Total:
$790.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
