Door/Window Casing 4-1/2" - 25
Door/Window Casing 4-1/2" - 25

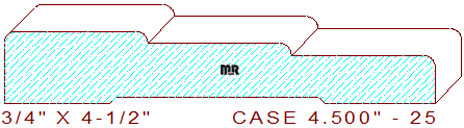

This stepped 4-1/2" - 25 door/window casing measures 4.500" wide by .750" thickness, enabling the detail to be milled from four-quarter lumber. The tiered profile is comprised of three equally divided 1-1/2" wide steps with 1/8" eased edges used in the transition of elevation changes, leaving a 1/2" thickness dimension on the right side of the pattern. We offer another profile in the same width with smaller round-overs that would require thicker lumber for your review and consideration, door/window casing 4.500" - 8.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.531
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$316.00
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$337.00
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.50
$368.50
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
