Door/Window Casing 4-1/2" - 8

Door/Window Casing 4-1/2" - 8

Door/Window Casing 4-1/2" - 8

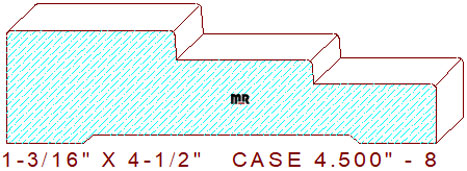

This three-step 4-1/2" - 8 door/window casing measures 4.500" wide by 1.187" thickness, necessitating the use of six-quarter lumber for milling on an industrial moulder. The tiered profile is composed of a 1-25/32" wide by 5/16" tall raised fillet with 1/16" eased edges on the top left. It's connected to a 1-7/16" wide by 1/4" deep drop in elevation with a 1/16" round-over in the center, attached to a 1-9/32" broad line segment also with a 1/16" radius edge leaving a 5/8" thickness dimension on the right side of the pattern. We offer another profile in the same width with larger round-overs that would require thinner lumber for you to review and consider, door/window casing 4.500" - 25.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.780
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$326.50
$305.50
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$347.50
$326.50
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.50
$347.50
Total:
$716.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
