Door/Window Casing 5" - 13
Door/Window Casing 5" - 13

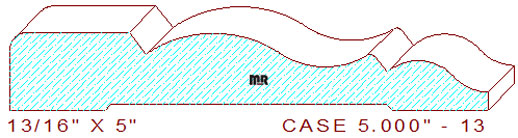

This charming 5" - 13 door/window casing measures 5.000" wide by .812" thickness, authorizing the pattern milling out of four-quarter lumber. The good-looking profile comprises a 1-1/4" wide flat area with a 3/16" radius edge on the top left. It's connected to a 3/16" wide beveled section that transitions into a two tangent radius cyma reversa, joined to a 5/32" broad chamfered line with another smaller ogee on the thin side of the pattern.
This gorgeous door casing is available in a few smaller size widths, door casing 2.250" - 17, door casing 3.250" - 4, casing 3.500" - 147 and casing 4.000" - 19. We also have a few assorted width baseboard mouldings that would complement this pattern beautifully for your review and consideration, base 8.000" - 74, baseboard 8.000" - 48, baseboard 5.500" - 8, and baseboard 3.250" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$342.00
Total:
$707.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$388.00
$365.00
Total:
$753.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$422.50
$399.50
Total:
$822.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
