Chair Rail 3" - 106
Chair Rail 3" - 106

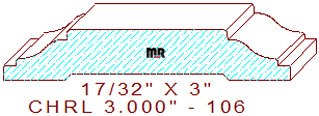

This fancy 3" - 106 chair rail measures 3.000" wide by .531" thickness, allowing the pattern to be milled from four or resawn six quarter lumber. The symmetrical profile is composed of 1-11/16" wide by 7/64" tall raised fillet in the center, flanked by a two tangent radius ogee with a 1/8" wide by 5/64" deep notch on each side edge of the pattern. We offer a larger version of this design for your review and consideration, chair rail 3.500" - 10. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we're confident you will find a functional design to match your needs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.00
$238.00
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$253.00
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$275.50
Total:
$551.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
