Chair Rail / Casing Moulding 3-1/2" - 10

Chair Rail / Casing Moulding 3-1/2" - 10

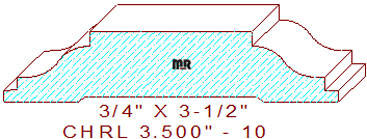

This beautiful chair rail/casing moulding 3-1/2" - 10 measures 3.500" wide by .750" thickness. The symmetrical profile is comprised of a 1-11/16" wide by 5/32" deep raised fillet in the center, flanked by a two tangent radius cyma reversa on each side, connected to a 9/64" wide by 9/64" deep squared notch leaving a 1/8" thickness dimension on each side edge of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .625" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
