Chair Rail 3-1/2" - 40
Chair Rail 3-1/2" - 40

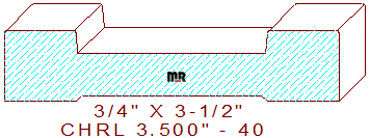

This simplistic 3-1/2" - 40 chair rail/casing measures 3.500" width by .750" thickness, permitting a 3-3/4" wide blank of four-quarter lumber for milling on a commercial moulder. The modern profile contains a two-inch-wide by 1/4" deeply sunk fillet in the center, flanked by 3/4" wide raised fillets with 3/64" eased edges on all four corners. We offer a larger version of this profile with the same design characteristics for your review and consideration, chair rail 5.500" - 7.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$265.00
$265.00
Total:
$530.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$282.00
$282.00
Total:
$564.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.50
$307.50
Total:
$615.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
