Chair Rail Moulding 3-1/2" - 8

Chair Rail Moulding 3-1/2" - 8

Chair Rail Moulding 3-1/2" - 8

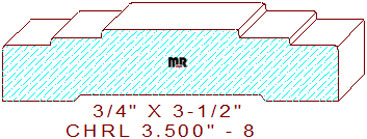

This southwestern symmetrical casing moulding 3-1/2" - 8 measures 3.500" wide by .750" thickness, permitting the detail to be machined out of four quarter lumber. The stylish bidirectional stepped profile is composed of a 1-7/16" wide by 5/64" tall raised fillet with 3/64" round-overs on the top center, flanked by a 17/32" wide by 5/64" deep step, and a 1/2" wide line segment with 3/64" rolled edges leaving a 37/64" thickness dimension on each side of the design. We offer the matching baseboard for this pattern for your review and consideration, base moulding 6.000" - 152, and many alternative profiles as well, here is a very unique one you may want to take a look at, base moulding 5.500" - 132.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling designs to help match your creative style.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .363" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
