Base Moulding 5-1/2" - 132

Base Moulding 5-1/2" - 132

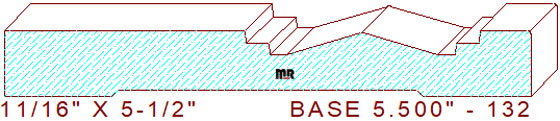

This southwest themed baseboard moulding 5-1/2" - 132 measures 5.500" wide by .687" thickness, allowing the pattern to be machined out of four quarter lumber. The American Indian and Mexican influenced profile is composed of a 2-33/64" wide flat line segment on the top left, joined to a 1/4" wide by 9/64" notch and a 3/16" wide by 7/64" deep sunk fillet, merged with a 1-33/64" wide, 147.622 degree obtuse angled center with identical steps as the other side, attached to a 17/32" wide flat line with a 3/64" eased edge on the right side of the pattern. We offer hundreds of moulding designs with Indigenous American overtones, here are just a few you may want to review and consider, baseboard 7.000" - 8, symmetrical casing 3.000" - 24 and casing 3.000" - 44.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.500" / Depth of Cut = .250" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
