Chair Rail/Casing 3-3/4" - 12

Chair Rail/Casing 3-3/4" - 12

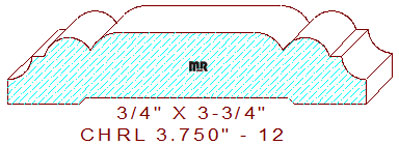

This Attractive Chair Rail/Casing Moulding 3-3/4" - 12 measures 3.750" wide by .750" thickness. The symmetrical design is comprised of a double 21/64" radius edge fillet in the center, flanked by a 1/2" wide circular arc, attached to a small 1/8" wide fillet and a 17/64" radius cove on each side of the pattern. We also have a larger version of this same detail, chair rail 5.000" - 4, with the center section increased in width.

Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. We pride ourselves on providing some of the finest quality acrylic templates & profile knives in the woodworking industry, with excellent customer service and affordable pricing. Offer us an opportunity to demonstrate our abilities, you will be pleasantly surprised with our services.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. Read a brief detailed explanation on how to use the calculator here, width = 3.750", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .656", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
