Chair Rail/Casing 5" - 4

Chair Rail/Casing 5" - 4

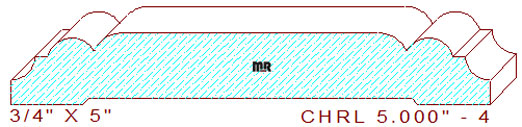

This Beautiful Chair Rail/Casing Moulding 5" - 4 measures 5.000" wide by .750" thickness. The symmetrical design is comprised of a double 21/64" radius edge fillet in the middle, flanked by a 1/2" wide half round beads, attached to a small 1/8" wide fillet and a 17/64" radius cove on each edge of the pattern. We also have a smaller version of this same detail, chair rail 3.750" - 12, the center is smaller in width.

Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Please let us help you in the transformation of your client's house being constructed into a home.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. Read a brief detailed explanation on how to use the calculator here, width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .656", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
