Chair Rail 4-9/16"
Chair Rail 4-9/16"

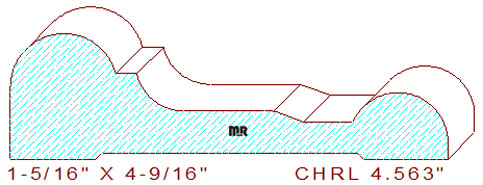

This stylish 4-9/16" chair rail measures 4.563" wide by 1.313" thickness. The profile comprises a 9/16" radius half-round circle connected to a 7/32" wide fillet that transitions into a 1/2" radius congee with a 9/32" wide down-sloping bevel that joins to a 1/2" wide fillet attached to a 1" wide half circle on the thin side of the pattern. Please check your machine's cutting circle on this detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.562
Depth of Cut: 1.250
Bottom Cutter Head
Width: 4.562
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.72
$319.22
Total:
$680.94
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$382.97
$340.47
Total:
$723.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$414.84
$372.34
Total:
$787.18
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
