Chair Rail 5-1/4" - 3
Chair Rail 5-1/4" - 3

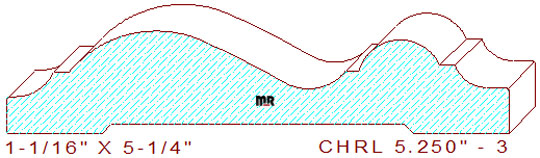

This large 5-1/4" - 3 colonial chair rail measures 5.250" width by 1.062" thickness, necessitating a 5-1/2" wide blank of five-quarter lumber for milling on an industrial moulder. The beautiful asymmetrical profile comprises a 7/16" cove attached to a 5/32" horizontal fillet on the upper left. The short segment connects to a graceful three-tangent radius s-shaped curvature in the center. The remaining portion consists of a 27/32" broad half-circle flanked by small fillets and a 9/16" broad congee derived from an 11/32" concave semicircle on the pattern's right side. Review our commentary on custom-made pressure shoes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.899
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$355.00
Total:
$734.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$403.00
$379.00
Total:
$782.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$439.00
$415.00
Total:
$854.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
