Cove 3-1/2" - 1
Cove 3-1/2" - 1

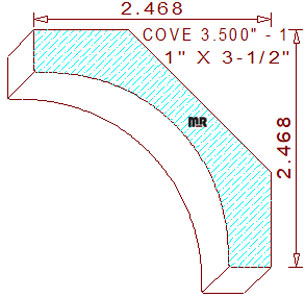

This 3-1/2" - 1 cove mould measures 3.500" wide by 1.000" thick. The symmetrical profile is comprised of a 1-7/8" radius arc in the center, connected to a 7/16" tall vertical line on the top and a 7/16" broad horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-15/32" tall and wide.
Two high points in the design were deliberately positioned on the same plane. Our disciplined design features will assure excellent hold-down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates. Thanks for allowing us to help enhance a home's marvelous architectural details, one gorgeous moulding design at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.700
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.700
Top Cutter Head
Width: 3.500
Depth of Cut: 0.641
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$281.00
Not Needed
Total:
$590.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$298.00
Not Needed
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$323.50
Not Needed
Total:
$680.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
