Cove Moulding 3-1/2" - 2

Cove Moulding 3-1/2" - 2

Cove Moulding 3-1/2" - 2

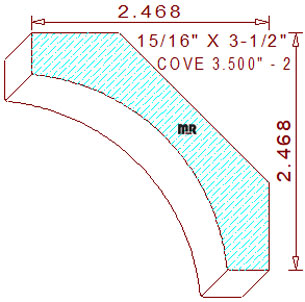

This cove/crown moulding 3-1/2" - 2 measures 3.500" wide by .937" thickness. The symmetrical profile is comprised of a 2-1/4" radius arc in the center, connected to a 7/16" tall vertical line on the top and a 7/16" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-15/32" tall and wide.

Two high points in the design were purposely positioned on the same plane, these design features will assure excellent hold down conditions while milling the detail on an industrial moulder providing the pressure shoe is parallel to the bed plates. We offer thousands of innovative moulding profiles designed to save time and money in your demanding milling production schedule, try a few of our beautiful designs today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.500" / Depth of Cut = .510" (top knives).

Thickness = .938" / Depth of Cut = .645" (right blades) & .645" (left cutters), only one template is required for the left and right cutters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
