Cove Moulding 4" - 8

Cove Moulding 4" - 8

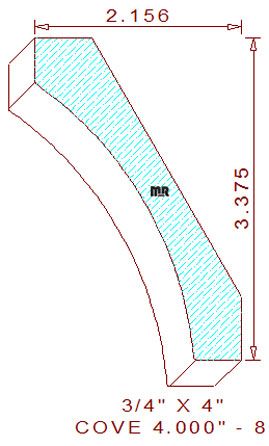

This Cove Moulding 4" - 8 measures 4.000" wide by .750" thickness, the profile consist of a 3-7/8" radius cavetto with 1/2" fillets flanked on both the top and bottom edge of the pattern. The spring angles are fixed at thirty and sixty degrees which sets the installed the height at 3-3/8" tall with a projection of 2-5/32" wide, two high points in the design of the cove have been positioned on the same level plane for optimal hold down while milling the product.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
