Cove Moulding 4-1/4" - 2

Cove Moulding 4-1/4" - 2

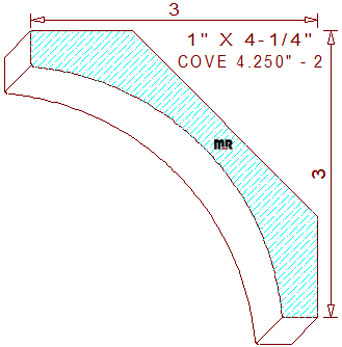

This elegant cove/crown moulding 4-1/4" - 2 measures 4.250" wide by 1.000" thickness. The symmetrical profile will require five quarter lumber to mill this on an industrial style molder, it is comprised of a deep 2-7/8" radius cavetto in the center, connected to a 3/8" wide vertical line at the top and a 3/8" wide horizontal line on the bottom of the design.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3" tall and wide. Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Two high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .665" (top knives).

Thickness = 1.000" / Depth of Cut = .750" (right blades) & .750" (left cutters), only one template is needed to make the side cutters.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
