Cove Moulding 4-5/16"

Cove Moulding 4-5/16"

Cove Moulding 4-5/16"

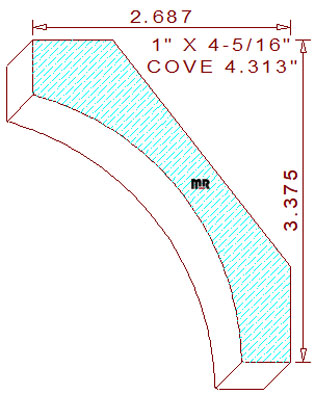

This asymmetrical cove/crown moulding 4-5/16" measures 4.312" wide by one inch thickness, permitting the detail to be machined sprung (laying horizontally flat) out of four quarter lumber. The concave profile is composed of a 2-15/16" radius cove in the center, flanked by a 19/32" tall vertical line at the top and a 1/2" wide horizontal line segment at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-3/8" tall with a projection of 2-11/16" wide.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.312" / Depth of Cut = .582" (top knives.)

Thickness = 1.000" / Depth of Cut = .511" (right blades) & .786" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
