Cove Moulding 4-5/16" - 1

Cove Moulding 4-5/16" - 1

Cove Moulding 4-5/16" - 1

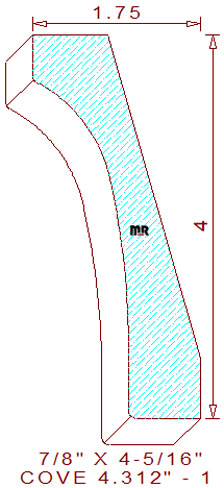

This modest cove molding 4-5/16" - 1 measure 4.327" wide by .875" thickness, necessitating the use of five quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The unpretentious terminating profile is composed of a 1/2" tall vertical line segment on the top left, attached to a shallow 1-1/2" concave semicircle tangent to an 8-1/2" radius cove in the center, joined to a 45/64" vertical line perpendicular to a 3/4" wide horizontal line on the bottom right side of the design. To obtain even hold down points while milling, the set spring angles are fixed at sixteen and seventy-four degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4" tall with a projection of 1-3/4" wide.

Ever wonder why certain species of wood have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of moulder tooling.

For molding knife quoting purposes click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.312" / Depth of Cut = .797" (top knives).

Thickness = .875" / Depth of Cut = .216" (right blades) & .601" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
