Cove 4-3/8" - 2
Cove 4-3/8" - 2

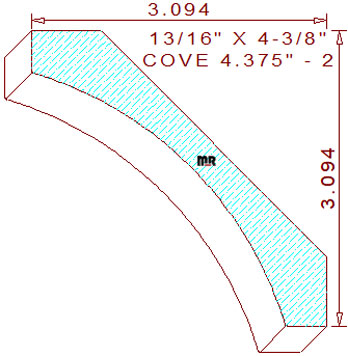

This symmetrical 4-3/8" - 2 cove mould measures 4.375" wide by .812" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four quarter lumber. The lovely concave profile is composed of a 3-15/16" radius cove in the center, attached to a 7/16" tall vertical line on top and a 7/16" broad line segment at the bottom. The spring angles are fixed at forty-five degrees . These back bevels set the installed height at 3-3/32" tall with a projection of 3-3/32" wide.
Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our stunning designs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.514
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.514
Top Cutter Head
Width: 4.375
Depth of Cut: 0.388
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$309.50
Not Needed
Total:
$599.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$330.00
Not Needed
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$360.75
Not Needed
Total:
$698.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
