Cove 4-7/16"
Cove 4-7/16"

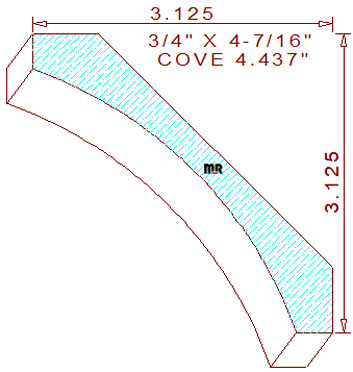

This balanced 4-7/16" cove mould measures 4.421" wide by .750" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of four quarter lumber. The lovely concave profile is composed of a 4-1/2" radius cove in the center, attached to a 3/8" tall vertical line on top and a 3/8" broad line segment at the bottom of the design. The spring angles are fixed at forty-five degrees . These specific back bevels set the installed height at 3-1/8" tall with a projection of 3-1/8" wide.
Looking for that special moulding to enhance the architectural style of your current project? Please send us a sketch, custom profile design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.493
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.493
Top Cutter Head
Width: 4.437
Depth of Cut: 0.434
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$312.72
Not Needed
Total:
$602.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$333.47
Not Needed
Total:
$642.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$364.59
Not Needed
Total:
$702.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
