Cove 5" - 1
Cove 5" - 1

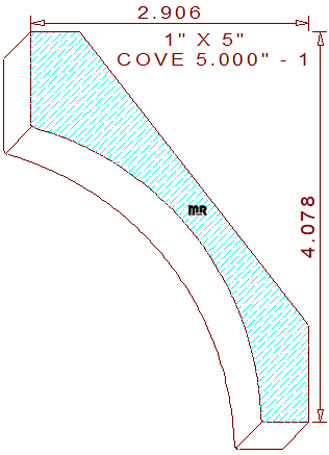

This attractive 5.000" - 1 cove mould measures wide by 1.000" thickness, necessitating five-quarter lumber for milling on an industrial moulder. The lovely asymmetrical design comprises a 3-1/4" radius cavetto in the center, attached to a one-inch tall vertical line on the top and a 1/2" broad horizontal line on the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-5/64" tall with a projection of 2-29/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.404
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.627
Top Cutter Head
Width: 5.000
Depth of Cut: 0.664
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$176.00
$365.00
Not Needed
Total:
$707.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$185.50
$388.00
Not Needed
Total:
$749.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$199.75
$422.50
Not Needed
Total:
$812.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
