Cove Moulding 5-3/32"

Cove Moulding 5-3/32"

Cove Moulding 5-3/32"

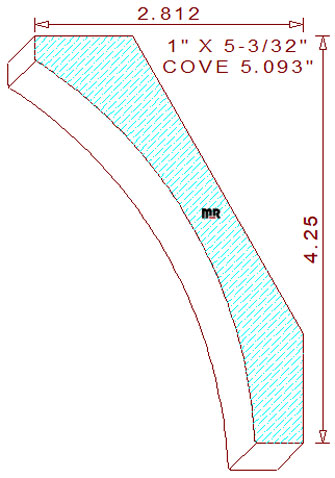

This large cove moulding measures 5-3/32" wide by one inch thickness, necessitating the use of five quarter lumber for milling on an industrial style molder. The concave profile consists of a five inch radius cavetto in the center, flanked by a 1/4" vertical line segment on top and a 17/32" wide horizontal line on the bottom. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 4-1/4" tall with a projection of 2-13/16" wide.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Three high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, as long as the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.093" / Depth of Cut = .555" (top knives.)

Thickness = 1.000" / Depth of Cut = .508" (right blades) & .969" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
