Cove 5-1/4" - 1
Cove 5-1/4" - 1

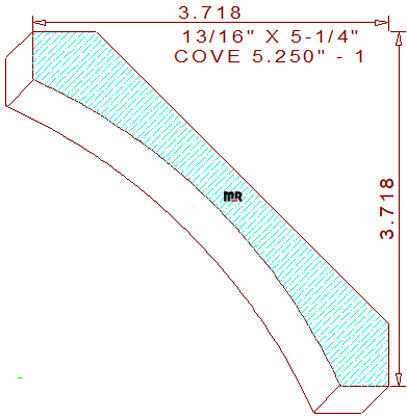

This beautiful 5-1/4" - 1 cove mould measure 5.250" wide by .812" thickness, permitting the detail to be machined out of four quarter lumber. The embellishing symmetrical profile comprises a 6-15/32" radius cavetto in the center, attached to a 1/2" tall vertical line on the top and a 1/2" broad segment on the bottom of the pattern. The spring angles are forty-five degrees, these dedicated back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-23/32" tall with a projection of 3-23/32" wide.
We're delighted you found a beautiful profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial machinery and knife grinding room. If you're new to the industry, read some of our informational articles to get started with the basics. We share a passion for excellence and a quest to be a premier craftsman for all our talented clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.466
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.466
Top Cutter Head
Width: 5.250
Depth of Cut: 0.434
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$355.00
Not Needed
Total:
$645.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$379.00
Not Needed
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$415.00
Not Needed
Total:
$752.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
