Cove Moulding 5-1/4" - 2

Cove Moulding 5-1/4" - 2

Cove Moulding 5-1/4" - 2

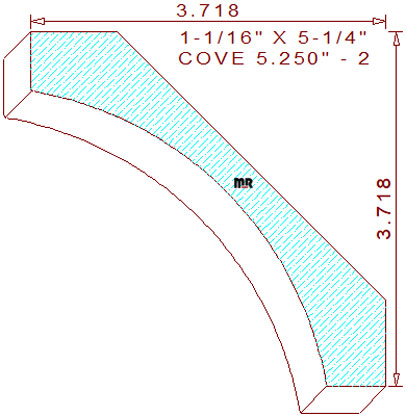

This attractively bold cove moulding 5-1/4" - 2 measures 5.250" wide by 1.062" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of five quarter lumber. The glamorous terminating profile comprises a 3-49/64" radius cavetto in the center. The middle is attached to a 5/8" tall vertical line on the top left and a 5/8" wide horizontal segment on the bottom right corner of the pattern. The spring angles are forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-23/32" tall with a projection of 3-23/32" wide.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of us caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, please enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the machinery to help operators save time and increase accuracy during setup procedures.

Width = 5.250" / Depth of Cut = .690" (top knives).

Thickness = 1.062" / Depth of Cut = .637" (right blades) & .637" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
