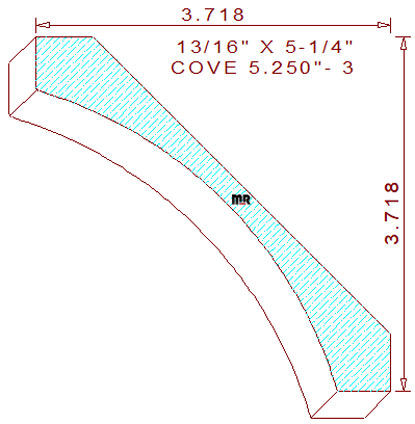

This custom symmetrical cove moulding 5-1/4" - 3 measures 5.250" wide by 13/16" thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of four quarter lumber. If you feel the center of the design is too thin (1/4") then consider milling at a one inch thickness dimension, please keep in mind that this thickness change will necessitate the use of five quarter lumber. The profile comprises a 4-5/8" radius cavetto flanked by a 9/16" tall vertical line on top and a 9/16" wide horizontal line at the bottom of the design. The spring angles are forty-five degrees, these back bevels set the installed height and projection at a identical dimension of at 3-23/32" tall and wide.

Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Two high points in the pattern were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the machine's pressure shoe is parallel to its bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, please determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .562" (top knives).

Thickness = .812" / Depth of Cut = .426" (right blades) & .426" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
