Cove Moulding 5-3/8"

Cove Moulding 5-3/8"

Cove Moulding 5-3/8"

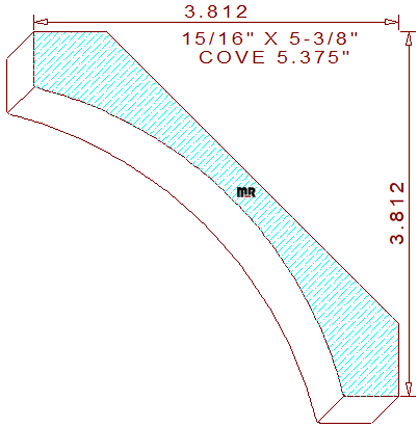

This elegant cove molding 5-3/8" measures 5.391" width by .937" thickness, necessitating the use of a 5-5/8" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The symmetrical terminating profile contains a 4-7/16" radius concave semicircle in the center, flanked by a 19/32" tall vertical line segment in the upper left and a 19/32" horizontal line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles also lock in the positioned height at 3-13/16" tall with a projection of 3-3/16" across the top.

Need this profile template and a set of molding cutters quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; there are thousands of compelling designs to help match your creative style.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.375" / Depth of Cut = .625" (top knives).

Thickness = .937" / Depth of Cut = .539" (right blades) & .539" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
