Cove Moulding 6" - 3

Cove Moulding 6" - 3

Cove Moulding 6" - 3

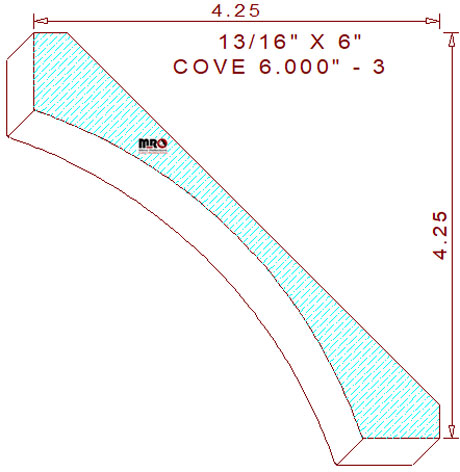

This large cove moulding 6" - 3 measures 6.000" wide by .812" thickness, enabling a 6-1/4" wide blank of four-quarter lumber for milling sprung (laying horizontally flat on an industrial moulder, The symmetrical terminating profile comprises a 5-29/64" radius cove in the center, connected to a 13/16" vertical line on top and a 13/16" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at 4-1/4" tall and wide. Two high points in the detail were deliberately positioned on the same plane; our specialized design practices will assure excellent hold down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.

Learn how to become more efficient while searching over 15,000 mouldings in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project. We're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes use the calculator below; we have added only the important measurements; please determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .625" (top knives).

Thickness = .812" / Depth of Cut = .250" (right blades) & .250" (left knives), only one template is required for the side cutters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
