Cove Moulding 7-15/32"

Cove Moulding 7-15/32"

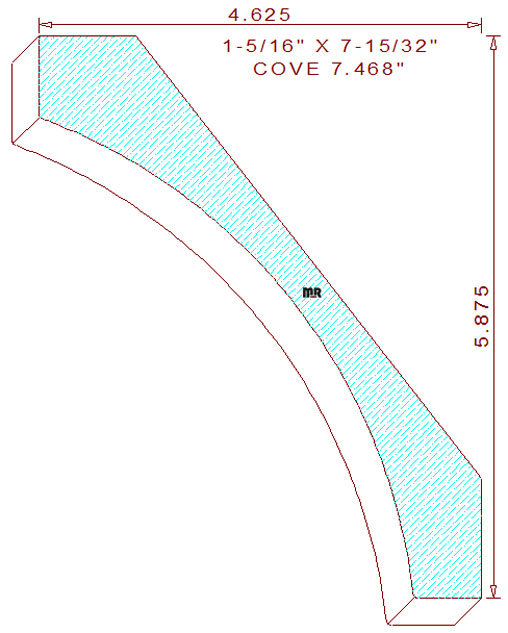

This Huge Cove/Crown Moulding 7-15/32" measures 7.468" wide by 1.312" thickness with a .887" depth of cut on the top horizontal moulder cutter head, a .627" depth of cut on the right vertical and a .992" on the left vertical moulder cutters on an industrial style moulder. The asymmetrical profile is comprised of a 6-1/64" radius cavetto attached to a 7/8" tall vertical fillet on top with a 23/32" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height at 5-7/8" tall with a projection of 4-5/8" wide. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us we would be honored to assist you.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
