Crown 2-5/8" - 17

Crown 2-5/8" - 17

Crown 2-5/8" - 17

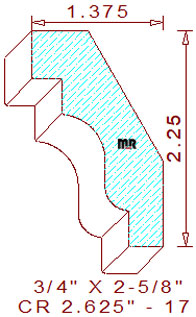

This small tall crown moulding 2-5/8" - 17 measures 2.636" width by .750" thickness, requiring a 2-7/8" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The crafted terminating profile retains a 1/2" vertical fillet connected to a 3/8" tall by 5/16" wide notch on the top left. The rabbet attaches to a 15/32" concave semicircle tangent off a 1/4" convex arc, creating the cyma recta in the center. The s-shaped curvature attaches to a 3/8" by 3/8" set of perpendicular lines on the design's bottom right corner. The spring angles are fixed at thirty and sixty degrees, these precise back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the height position at 2-1/4" tall with a 1-3/8" projection across the top.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially, provided the machine is properly calibrated. Two high points in the pattern layout were deliberately positioned on the same plane, our disciplined design features will assure excellent hold-down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 2.625" / Depth of Cut = .463" (top knives).

Thickness = .750" / Depth of Cut = .297" (right blades) & .777" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
