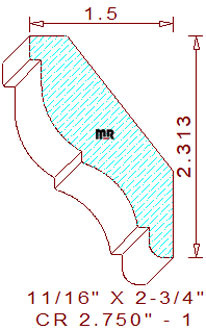

This Unique Crown Moulding 2-3/4" - 1 measures 2.750" wide by .687" thickness, the profile is ornate with many geometrical shapes including stepped fillet on top, an ovolo that transitions into a cavetto flanked by more fillets, and a quarter round on the bottom. When installed, the applicable height dimension is 2-5/16" tall, with a projection of 1-1/2" wide, the spring angles are set at thirty-eight and fifty-two degrees, the points in the design are positioned on the same level plane for optimal hold down conditions during production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
