Crown 2-3/4" - 12

Crown 2-3/4" - 12

Crown 2-3/4" - 12

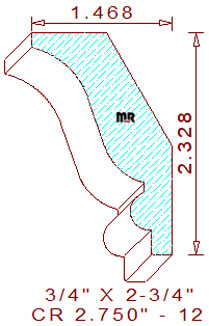

This decorative 2-3/4" - 12 crown mould measures 2.750" wide by .750" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The lovely profile is comprised of a 5/32" tall vertical line on top, attached to a two tangent radius cyma recta with a 3/32" sunk fillet in the middle, joined to a 13/32" teardrop shaped bead with a 17/64" tall by 7/32" wide squared lines at the bottom of the design. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 2-21/64" tall with a projection of 1-15/32" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.684
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.571
Top Cutter Head
Width: 2.750
Depth of Cut: 0.304
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$218.00
Not Needed
Total:
$551.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$232.00
Not Needed
Total:
$584.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$246.00
Not Needed
Total:
$617.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
