Crown 2-13/16" - 4

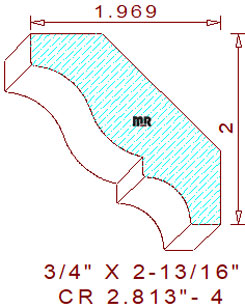

This standard 2-13/16" - 4 crown mould measures 2.812" wide by .750" thickness. The profile is comprised of an 11/32" tall vertical line on top, connected to an 11/16" concave semicircle tangent off of a 3/4" radius arc, joined to a 7/32" tall vertical line with a 15/32" cove and a 5/16" broad horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2" tall with a projection of 1-31/32" wide. Three high points in the detail were deliberately positioned on the same plane; this specialized design feature will assure excellent hold-down conditions while milling, providing the pressure shoe is parallel to the machine bed plates.
