Crown Moulding 3"

Crown Moulding 3"

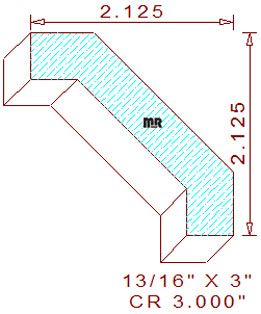

This beveled crown moulding 3" - 3 measures 3.000" wide by .812" thickness, with a with a .413" depth of cut on both the right and vertical cutters, and a .452" depth of cut on the top horizontal set of profile knives.

The splay faced symmetrical profile is composed of two 31/64" wide by 31/64" deep square fillets positioned on the top and bottom of the pattern, they are connected to one another by a 1-5/8" wide forty-five-degree angled line. The spring angles are fixed at forty-five degree, search our bevels category by degree to find a set of back bevel cutters appropriate for this beveled crown moulding. These specific bevels set the installed height and projection at an identical dimension of 2-1/8" tall and wide. We have a few other profiles of different sizes available for your review and consideration, Crown 3.531 - 8", Crown 3.375", and Crown 3.500" - 36.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
