Crown Moulding 3" - 1

Crown Moulding 3" - 1

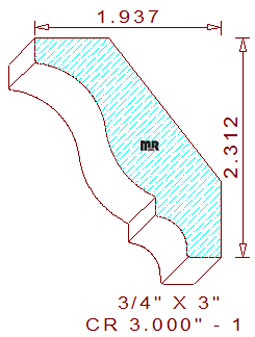

This colonial crown moulding 3" - 1 measures 3.000" wide by .750" thickness, with a .364" depth of cut on the top horizontal set of moulder cutters.

The profile is comprised of a cyma recta, flanked by vertical fillet that transitions into a 11/32" radius cavetto, with a 5/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree, these specific bevels set the installed height at 2-5/16" tall with a projection of 1-15/16" wide. Please look in our bevels category (search by degree) for a set of beveled moulding cutters appropriate for this profile. We have intentionally designed all our crown and cove mouldings with cuts of forty-five degree and under, to be milled on the right side vertical moulder cutter head, and all forty-five degree cuts and higher, to be milled on the left side vertical moulder cutter head.

We offer thousands of beautifully shaped architectural moulding designs that reflect the past, present, and future of this specialized woodworking industry, find yours now.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
